The Future of Injection Molding Tool Technology
Innovative solutions for precision manufacturing and industrial efficiency
Introduction to Injection Molding Tool Technology
The injection molding tool is a critical component in modern manufacturing, enabling the mass production of complex plastic components with high precision and consistency. As industries continue to demand more sophisticated and efficient production methods, the development of advanced injection molding tool technology has become paramount.
Today's injection molding tool incorporates cutting-edge materials, computer-aided design (CAD) software, and innovative manufacturing processes to deliver exceptional performance. From automotive parts to medical devices, the injection molding tool plays a vital role in producing high-quality components that meet the stringent requirements of various industries.
This comprehensive guide explores the latest advancements in injection molding tool technology, market trends, design best practices, and common challenges faced by manufacturers. Whether you're an industry professional or simply interested in learning more about this fascinating field, this resource provides valuable insights into the world of injection molding tools.
Advanced Tool Design
State-of-the-art injection molding tool designs incorporating conformal cooling and optimized geometries for enhanced performance.
Market Insights
Comprehensive data on the global injection molding tool market, including growth trends, regional analysis, and industry forecasts.
Troubleshooting Guide
Expert solutions to common injection molding tool issues, helping manufacturers minimize downtime and improve product quality.
Injection Molding Tool Technology Advancements

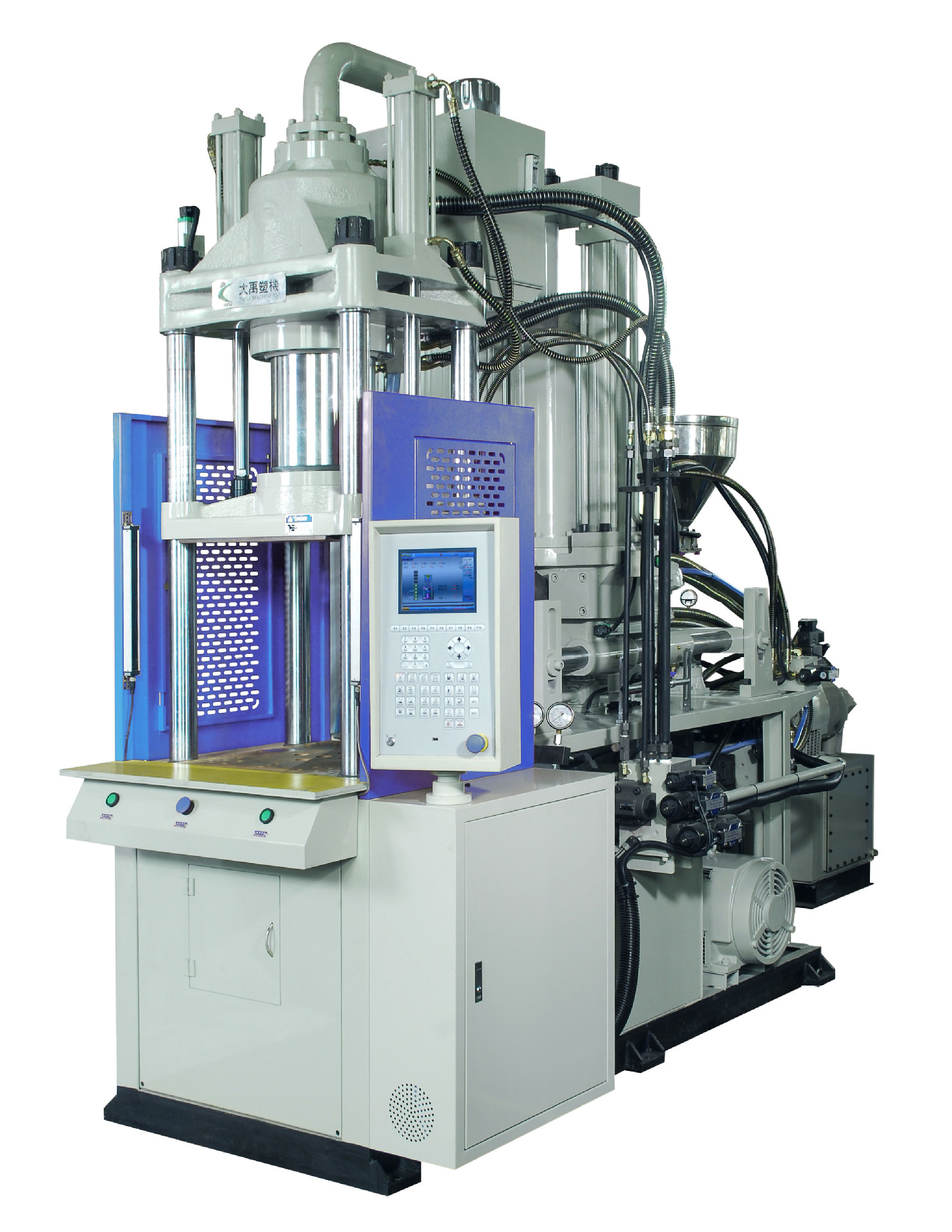

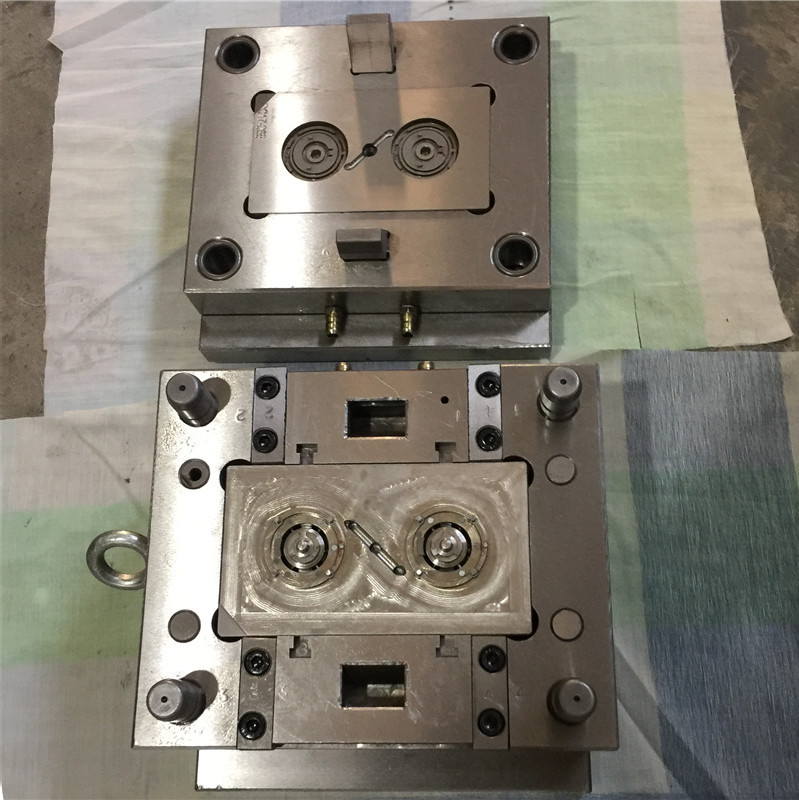

Additive Manufacturing in Injection Molding Tool Design
The integration of additive manufacturing (AM) into injection molding tool production has revolutionized the industry. This technology allows for the creation of complex geometries that were previously impossible with traditional manufacturing methods.
One of the most significant advantages of using AM for injection molding tool production is the ability to incorporate conformal cooling channels. These channels follow the contours of the mold cavity, resulting in more efficient and uniform cooling, which can reduce cycle times by up to 30%.
Additionally, AM enables the production of injection molding tools with optimized lattice structures, reducing weight while maintaining structural integrity. This not only improves handling but also enhances thermal performance and reduces material waste.

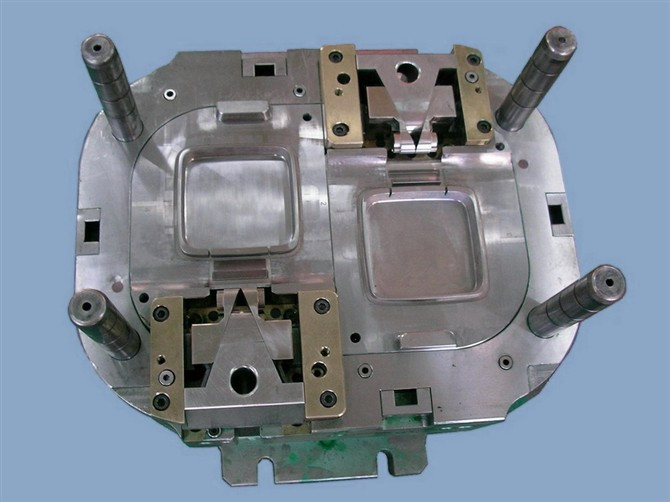

Precision Engineering in Injection Molding Tools
Modern injection molding tools require exceptional precision to meet the demanding tolerances of today's industries. Advanced computer numerical control (CNC) machining centers can achieve accuracies within ±0.005mm, ensuring that each injection molding tool meets the exact specifications required.
The use of high-performance materials such as H13 and S136 steels has also contributed to the improved precision of injection molding tools. These materials offer excellent wear resistance and thermal stability, maintaining their dimensional accuracy even under the extreme conditions of the injection molding process.
Furthermore, advanced measurement systems such as coordinate measuring machines (CMMs) and optical scanning technologies ensure that each injection molding tool is inspected to the highest standards, guaranteeing consistent performance and product quality.

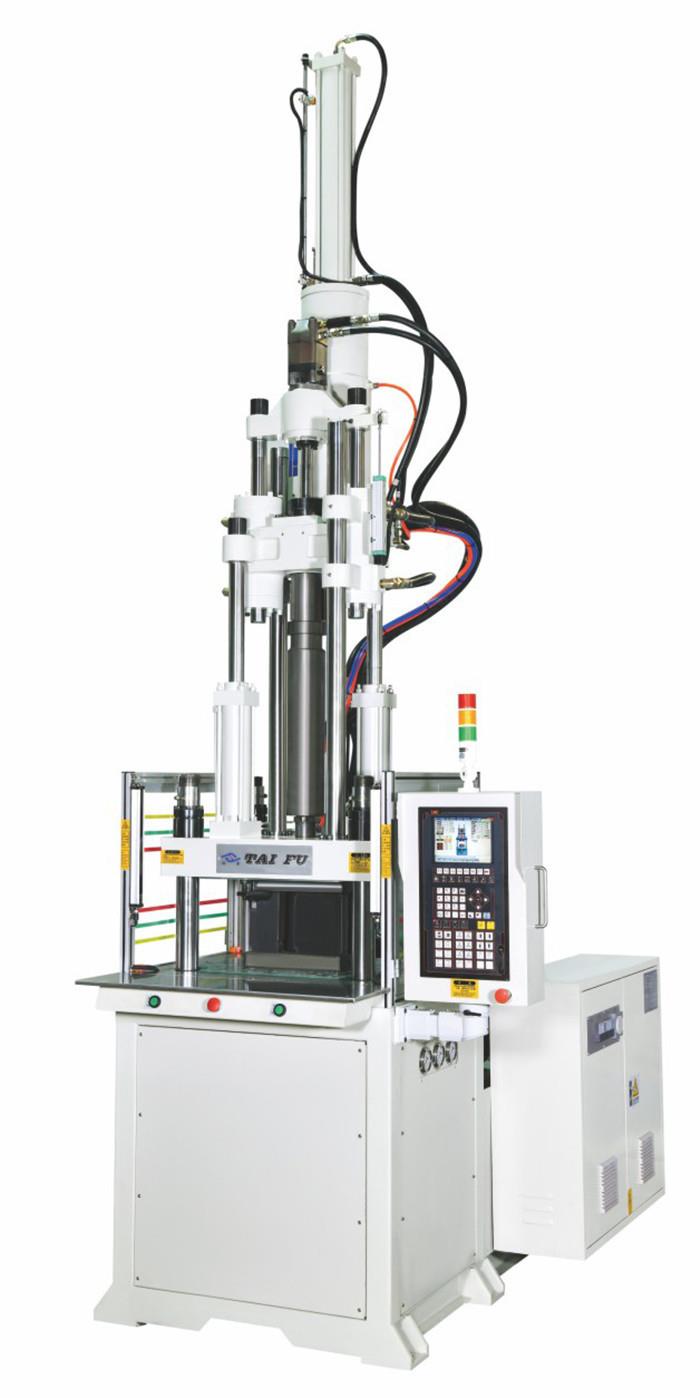

Smart Injection Molding Tools
The integration of sensors and data analytics into injection molding tools has given rise to the concept of "smart" tools. These intelligent injection molding tools can monitor various parameters in real-time, including temperature, pressure, and vibration, providing valuable insights into the molding process.
By analyzing the data collected from these sensors, manufacturers can optimize the performance of their injection molding tools, predict potential failures, and schedule maintenance proactively. This not only improves the efficiency of the production process but also extends the lifespan of the injection molding tool.
Additionally, the use of digital twin technology allows manufacturers to create virtual replicas of their injection molding tools, enabling them to simulate different operating conditions and optimize the tool design before physical production begins.
Injection Molding Tool Market Insights
Global Market Growth
The global injection molding tool market has experienced steady growth in recent years, driven by increasing demand from various end-use industries such as automotive, electronics, and medical. According to recent reports, the market size was valued at USD 22.61 billion in 2024 and is expected to reach USD 38.01 billion by 2033, growing at a CAGR of 5.94% during the forecast period.
In China, one of the world's largest markets for injection molding tools, the industry has shown remarkable resilience. In 2024, the Chinese injection molding market reached 186 billion yuan, with a year-on-year growth rate of 5.3%. This growth is attributed to the rapid development of downstream industries such as new energy vehicles and smart home appliances.
The automotive sector remains the largest application area for injection molding tools, accounting for approximately 38% of the market share. However, the medical industry is expected to witness the highest growth rate due to the increasing demand for high-precision, biocompatible components.
Regional Market Distribution
The Asia-Pacific region dominates the global injection molding tool market, accounting for more than 50% of the total market share. China, in particular, is the largest producer and consumer of injection molding tools, driven by its robust manufacturing sector and the presence of numerous automotive and electronics manufacturers.
In 2024, East China remained the core region of China's injection molding industry, with a market share of 33.3%, followed by South China at 25.8% and North China at 16.7%. The central and western regions are also experiencing rapid growth as a result of industrial transfer policies.
North America and Europe are mature markets for injection molding tools, with a focus on high-precision and specialized applications. These regions are expected to witness moderate growth, driven by advancements in technology and the increasing demand for lightweight and sustainable products.
Key Market Indicators
| Indicator | 2024 Value | 2025 Forecast | Growth Rate |
|---|---|---|---|
| Global Market Size | USD 22.61 billion | USD 23.95 billion | 5.94% CAGR |
| China Market Size | 186 billion yuan | 196 billion yuan | 5.4% |
| Number of Enterprises | 2,350+ | 2,450+ | 4.3% |
| R&D Investment | 8.6 billion yuan | 9.3 billion yuan | 8.1% |
| Automation Rate | 68% | 72% | 5.9% |
| Export Volume | 24.5 billion yuan | 26 billion yuan | 6.1% |
Injection Molding Tool Design Best Practices
Product Analysis
Thorough product analysis is essential before designing an injection molding tool. This includes understanding the product's function, appearance requirements, and dimensional accuracy.
- Surface roughness requirements (typically Ra0.8 - Ra1.6μm for automotive parts)
- Determination of appropriate ejection method
- Analysis of material properties and flow characteristics
Mold Structure Design
The structure of the injection molding tool directly impacts the quality of the final product and the efficiency of the production process.
- 合理设计分型面，确保产品顺利脱模
- 选择合适的浇口位置和类型（热流道、侧浇口等）
- 确保模架具有足够的强度和刚度
Cooling System Design
An efficient cooling system is crucial for maintaining consistent product quality and minimizing cycle times.
- Cooling channel diameter: 8-12mm
- Channel spacing: 3-5 times the diameter
- Distance from cavity surface: 10-15mm
- Use of conformal cooling for complex geometries
Ejection System Design
The ejection system must provide uniform force to prevent product deformation or damage during removal.
- 合理确定顶针数量、位置和直径
- 顶出行程应大于产品高度的1/3
- 确保顶针顶面与型腔底面齐平或略高0.05-0.1mm
Slider and Lifter Design
Sliders and lifters are essential for producing parts with undercuts or complex geometries.
- 采用T型槽或燕尾槽导向，确保运动精度
- 斜顶角度一般不超过15°
- 选用耐磨材料，如Cr12MoV，淬火硬度HRC58-62
Ventilation System Design
Proper ventilation ensures the removal of air and gases from the mold cavity, preventing defects.
- 分型面处设置0.02-0.05mm排气间隙
- 开设深度为0.03-0.08mm的排气槽
- Consider using porous steel for complex geometries
Material Selection for Injection Molding Tools
Choosing the right material for an injection molding tool is critical to its performance, durability, and cost-effectiveness. The selection depends on various factors, including the type of plastic being processed, production volume, and part complexity.
| Material | Hardness (HRC) | Applications | Advantages |
|---|---|---|---|
| P20 | 28-32 | General purpose injection molding tools | Good machinability, moderate wear resistance |
| 718H | 32-36 | High-gloss and transparent parts | Excellent polishability, good corrosion resistance |
| S136 | 48-52 | Medical and food industry parts | Superior corrosion resistance, high polishability |
| H13 | 48-52 | High-temperature plastics, engineering resins | Excellent thermal stability, wear resistance |
| STAVAX | 48-52 | Highly polished, transparent parts | Mirror finish capability, corrosion resistance |
"The selection of injection molding tool material directly impacts the quality of the final product, production efficiency, and overall manufacturing costs. By carefully considering the specific requirements of each application, manufacturers can choose the optimal material that balances performance and cost-effectiveness."
— Injection Molding Tool Design Handbook, 2025 Edition
Authoritative Literature on Injection Molding Tool Technology
Optimizing Injection Molding Tool Design with Additive Manufacturing
Injection molding plays a pivotal role in modern manufacturing, enabling the mass production of complex components with high precision. However, traditional tooling methods often face challenges related to thermal management, design constraints, and material efficiency. This study examines the use of additive manufacturing (AM) in the development and optimization of injection molding tools to overcome these limitations. A novel prototype was fabricated using AM techniques, incorporating integrated cooling channels and optimized lattice structures to enhance thermal performance and simplify the manufacturing process.
Experimental validation demonstrated the prototype's effective integration into a vacuum-assisted resin transfer molding (VA-LRTM) system without requiring modifications to existing tooling setups. The results showed significant improvements in temperature regulation, reduced cycle times, and consistent mechanical properties of the molded components compared to conventional approaches. By reducing the number of tool components and eliminating the need for support structures during manufacturing, AM also minimized material waste and post-processing requirements.
This research highlights the transformative potential of additive manufacturing in injection molding tool design, offering increased flexibility, cost efficiency, and enhanced functionality to meet the evolving demands of modern industrial applications.
Jayasankar, D. C., Tröster, T., & Marten, T. (2025). Optimizing Injection Molding Tool Design with Additive Manufacturing: A Focus on Thermal Performance and Process Efficiency. Materials (Basel), 18(3), 571. https://doi.org/10.3390/ma18030571
Common Injection Molding Tool Problems and Solutions
Surface Wrinkles
Surface wrinkles occur when molten plastic encounters resistance during flow, causing the solidified layer to be pushed and形成波浪状纹路.
Solutions:
- Increase screw diameter to improve feeding capacity
- Raise nozzle and mold temperature to improve plastic fluidity
- Optimize injection speed (increase for better flow, decrease for turbulence)
- Adjust cooling water inlet position to avoid direct cooling at the gate
- Enlarge gate size to reduce flow resistance
Silver Streaks
Silver streaks are typically caused by moisture in the material, uneven mixing, air entrapment during injection molding, or excessive use of additives or release agents.
Solutions:
- 增强背压以压实熔料，排除气体
- 适当降低注射速度，防止气体夹带
- 定期清理料筒，避免杂质混入
- 提高模具温度，促进气体排出
- 对原料进行充分干燥处理
Weld Lines
Weld lines occur when two or more melt fronts meet during filling, creating a visible line on the part surface. This is often caused by low melt temperature, poor fluidity, or inadequate venting.
Solutions:
- Increase melt and nozzle temperature
- 提高注射速度，使熔体快速融合
- 在熔接线位置附近设置冷料井
- 增设排气槽或排气孔
- 优化浇口位置，避免熔体分流过早
Voids or Bubbles
Voids or bubbles are typically caused by shrinkage in thick-walled areas or trapped gases within the mold cavity.
Solutions:
- Increase injection and holding pressure
- 延长注射和保压时间
- 降低料筒末端温度，防止过早降解
- 将产品壁厚控制在6毫米以内
- 扩大浇口尺寸，缩短流道长度
Short Shots
Short shots occur when the mold cavity is not completely filled, resulting in incomplete parts. This can be caused by insufficient plasticizing capacity, excessive flow resistance, or inadequate venting.
Solutions:
- Increase injection speed or upgrade to a larger machine
- 使用带止回阀的螺杆，防止熔料回流
- 提高注射压力和模具温度
- 清理喷嘴堵塞，加快循环周期
- 增强模具排气能力
Flash
Flash refers to excess plastic that escapes from the mold cavity, typically at the parting line. This is usually caused by excessive injection pressure, high melt temperature, or insufficient clamping force.
Solutions:
- 降低注射压力和料筒温度
- 缩短注射时间，减缓注射速度
- 更换锁模力更大的注塑机
- 修整模具合模面，确保贴合紧密
- 考虑使用流动性较低或粘度较小的材料
Glossary of Injection Molding Tool Terms
Tool Design Terms
- Conformal Cooling
- Cooling channels that follow the shape of the mold cavity, providing more uniform cooling and reducing cycle times.
- Draft Angle
- A slight angle applied to the vertical surfaces of the mold cavity to facilitate easy ejection of the part.
- Ejection System
- The mechanism used to push the molded part out of the mold cavity after cooling.
- Gate
- The opening through which molten plastic enters the mold cavity.
- Hot Runner System
- A system that keeps the plastic in the runner hot during the injection molding process, eliminating waste.
- Parting Line
- The line where the two halves of the mold meet when closed.
Process Terms
- Back Pressure
- The resistance to the screw's forward movement during plasticization, which affects melt quality.
- Cycle Time
- The total time required to complete one injection molding cycle, including filling, packing, cooling, and ejection.
- Injection Pressure
- The pressure applied to the molten plastic to force it into the mold cavity.
- Packing Pressure
- The pressure maintained after the mold is filled to compensate for material shrinkage.
- Shot Size
- The amount of plastic injected into the mold cavity in one cycle.
- Venting
- The process of allowing air and gases to escape from the mold cavity during filling.
