The Future of Custom Plastic mold Manufacturing
The global custom plastic mold industry is experiencing unprecedented growth, driven by advancements in manufacturing technologies and increasing demand across various sectors. In 2025, the global market size is projected to reach 2800 billion yuan, with a compound annual growth rate of 6.5% annually. China, as the world's largest producer and consumer of plastic molds, accounts for over 35% of the global market share.
A custom plastic mold is a precision tool used to shape molten plastic materials into specific forms. These molds are essential in mass production processes, enabling the creation of complex and consistent plastic parts with high accuracy. From automotive components to medical devices, custom plastic mold technology plays a critical role in modern manufacturing.
The custom plastic plastic mold industry is characterized by continuous innovation, with manufacturers constantly developing advanced advanced materials and technologies to improve mold performance, reduce production costs, and shorten lead times. This article explores the latest trends, technologies, and best practices in custom plastic mold design and manufacturing.
Global Custom plastic mold Market Analysis
Market Size and Growth (2021-2025)
Regional Market Share
Industry Segmentation by Application
| Application Sector | Market Share (%) | Growth Rate (%) | Key Drivers |
|---|---|---|---|
| Automotive | 32% | 7.2% | Lightweighting, EV components |
| Electronics | 28% | 8.5% | 5G devices, miniaturization |
| Packaging | 20% | 5.1% | Sustainable packaging solutions |
| Medical | 12% | 12.0% | Medical device innovation |
| Others | 8% | 4.8% | Consumer goods, industrial parts |
The custom plastic mold market is witnessing significant growth across all regions, with Asia-Pacific leading the way, particularly in China, Japan, and South Korea. The automotive industry remains the largest consumer of custom plastic mold technology, driven by the increasing demand for lightweight components and electric vehicle production.
The electronics sector is experiencing rapid growth due to the proliferation of 5G devices and the need for smaller, more precise components. Medical applications are also expanding rapidly, with a projected growth rate of 12% annually, as advancements in medical technology require increasingly complex and precise plastic parts.
The Custom plastic mold Manufacturing Process
Design & Engineering

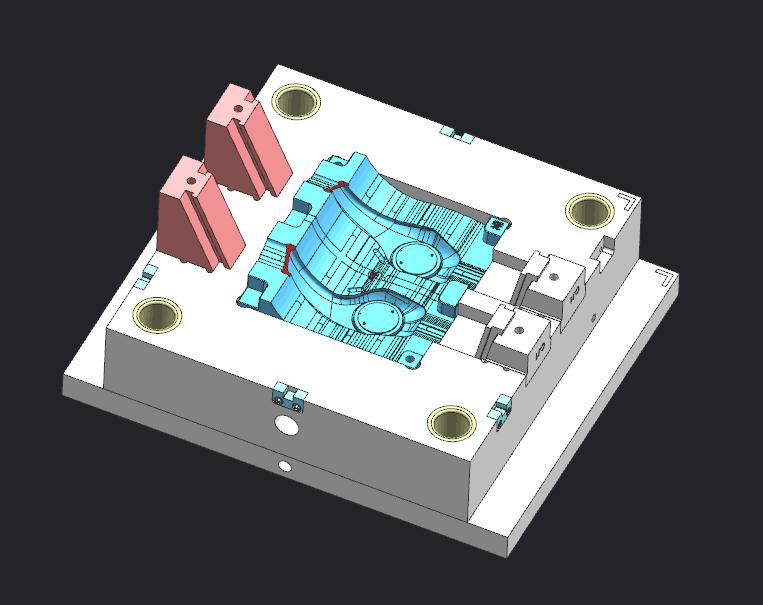

The first step in creating a custom plastic mold involves detailed design using CAD software. Engineers consider factors such as part geometry, material selection, and mold flow analysis to ensure optimal performance.
Mold Fabrication
Using advanced machining techniques like CNC milling and EDM, the custom plastic mold is precision-manufactured. High-quality materials such as hardened steel or aluminum are used to ensure durability and longevity.
Injection Molding
The custom plastic mold is mounted on an injection molding machine, where molten plastic is injected under high pressure. The plastic cools and solidifies, taking the shape of the mold cavity before being ejected as a finished part.
Detailed Process Steps
1. Mold Design Approval
After the 3D mold drawing is designed, the design department reviews and sends the mold drawing to the customer for confirmation.
The custom plastic mold design is thoroughly reviewed to ensure it meets all specifications and requirements.
High-quality materials are selected based on the specific requirements of the custom plastic mold.
2. Material Selection & Procurement
Mold steel and accessories are purchased according to the approved custom plastic mold design specifications.
3. Precision Machining
CNC machines, EDM, and other precision tools are used to create the custom plastic mold components with high accuracy.
Milling, turning, and grinding operations are performed to achieve the required dimensions and surface finish for the custom plastic mold.
Each component of the custom plastic mold is carefully assembled and tested for proper functionality.
4. Mold Assembly
All components of the custom plastic mold are assembled according to the design specifications, including cooling systems and ejection mechanisms.
5. Testing & Quality Control
The completed custom plastic mold undergoes rigorous testing to ensure it produces high-quality parts consistently.
Test runs are performed, and any necessary adjustments are made to optimize the custom plastic mold performance before full production begins.
Key Custom plastic mold Design Guidelines
Material Selection for Custom plastic mold
| Material Type | Shrinkage Rate | Temperature Range | Applications |
|---|---|---|---|
| ABS | 0.4-0.7% | 60-80°C | Electronics, automotive parts |
| Polypropylene (PP) | 1.5-2.5% | 40-60°C | Packaging, consumer goods |
| Polycarbonate (PC) | 0.5-0.7% | 80-120°C | Medical devices, optical components |
| PEEK | 1.2-2.0% | 160-180°C | Aerospace, high-performance parts |
Critical Design Considerations
-
Wall Thickness
Maintain uniform wall thickness (2-4mm) in the custom plastic mold design to ensure consistent filling and cooling.
-
Draft Angles
Include 0.5°-3° draft angles in the custom plastic mold to facilitate easy part ejection and prevent damage.
-
Radii and Corners
Use generous radii (R0.5mm minimum) in the custom plastic mold design to reduce stress concentrations and improve flow.
-
Rib Design
Design ribs with thickness no more than 70% of the wall thickness in the custom plastic mold to prevent sink marks.
-
Gating and Venting
Strategically place gates and vents in the custom plastic mold to ensure proper filling and gas evacuation.
Injection Molding Parameters
Temperature Control
- • Barrel: 180-240°C
- • Nozzle: 210-230°C
- • Mold: 40-120°C
Pressure Settings
- • Injection: 80-150 MPa
- • Holding: 60-80% of injection
- • Clamping: 3-5 tons per cm²
Cycle Time
- • Injection: 1-5 seconds
- • Holding: 5-20 seconds
- • Cooling: 10-60 seconds
Speed Settings
- • Injection: 20-100 mm/s
- • Screw: 50-150 rpm
- • Ejection: 10-50 mm/s
Technical Reference
"The design and optimization of custom plastic mold plays a crucial role in determining product quality, production efficiency, and cost control. With the automotive, electronics, and medical industries demanding higher precision (tolerances within ±0.05mm), better performance (temperature resistance, impact resistance), and shorter delivery times (typically 15-30 days), optimizing mold design and injection molding processes has become a key path for enterprises to enhance market competitiveness."
Source: Suzhou Hongrenwei'er Electric Co., Ltd. "Mold Design and Injection Process Optimization in Custom Plastic Part Production." https://www.hoorenwell.com/news/532-cn.html
Emerging Technologies in Custom plastic mold Manufacturing

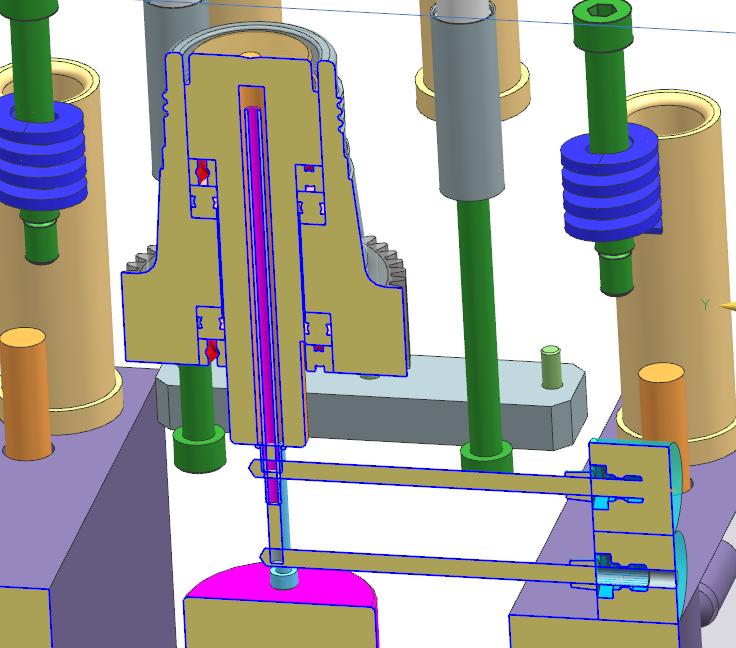

3D Printing for Custom plastic mold
Additive manufacturing is revolutionizing custom plastic mold production by enabling rapid prototyping and the creation of complex geometries that were previously impossible with traditional methods. 3D printed molds can reduce lead times by up to 70% and allow for more iterative design processes.

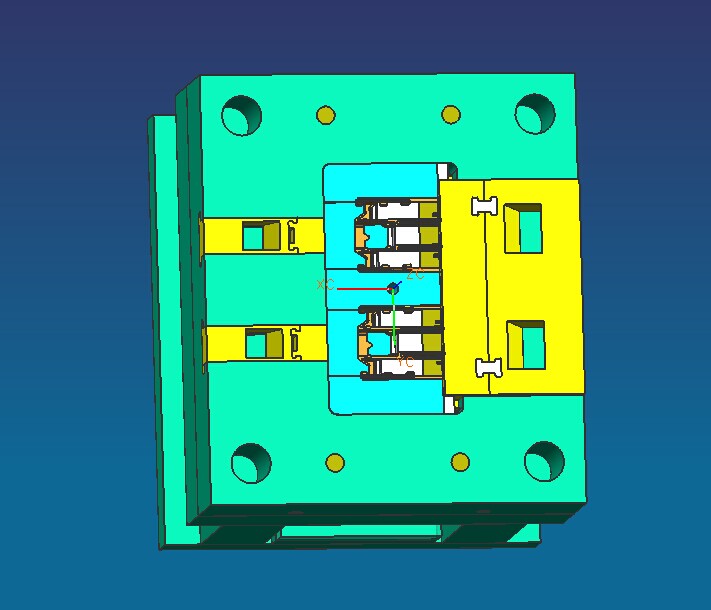

AI-Powered Mold Design
Artificial intelligence is being integrated into custom plastic mold design processes to optimize designs, predict potential issues, and improve overall performance. AI algorithms can analyze thousands of design iterations to find the optimal solution based on specific requirements and constraints.
Smart Manufacturing Systems
Industry 4.0 technologies are transforming custom plastic mold production with real-time monitoring, predictive maintenance, and data-driven process optimization. These smart systems can reduce downtime by up to 30% and improve overall equipment effectiveness (OEE) by 15-20%.
Technology Adoption Trends
Sustainability in Custom plastic mold Manufacturing
The custom plastic mold industry is increasingly focusing on sustainable practices, including the use of recycled materials, energy-efficient processes, and longer-lasting molds. Manufacturers are developing molds that can process bio-based plastics and reduce waste through better design and process control.
New technologies like microcellular injection molding are enabling the production of lighter parts with less material, while still maintaining strength and performance. This not only reduces material costs but also minimizes the environmental impact of custom plastic mold production.
Digital Twin Technology
Digital twin technology is being adopted in custom plastic mold manufacturing to create virtual replicas of molds and production processes. This allows manufacturers to simulate and optimize the entire production cycle before physical production begins, reducing errors and improving efficiency.
By creating a digital twin of a custom plastic mold, engineers can test different design iterations, predict potential issues, and optimize the manufacturing process. This technology can reduce time-to-market by up to 25% and improve product quality by identifying and resolving issues early in the design phase.
Frequently Asked Questions about Custom plastic mold
Glossary of Custom plastic mold Terms
Design Terms
- Draft Angle
- The slight taper applied to the walls of a custom plastic mold to facilitate easy ejection of the part.
- Parting Line
- The line where the two halves of a custom plastic mold meet during the injection molding process.
- Gate
- The opening through which molten plastic enters the cavity of a custom plastic mold.
- Runner
- The channel system in a custom plastic mold that delivers molten plastic from the sprue to the gate.
- Vent
- A small opening in a custom plastic mold that allows air and gases to escape during the injection process.
Manufacturing Terms
- Injection Molding
- The process of injecting molten plastic into a custom plastic mold cavity under high pressure.
- Cycle Time
- The total time required to complete one full production cycle with a custom plastic mold.
- Shrinkage
- The reduction in size of a plastic part as it cools after being removed from the custom plastic mold.
- Ejection
- The process of removing the finished part from the custom plastic mold after it has cooled.
- Overmolding
- A process where one material is molded over another using a specialized custom plastic mold.
